KBDfans x MM HE Gaming Keyboard Kit

⚡Limited In-stock
$191.00 USD
Choose the layout

Please follow the steps below to determine your configuration

TOFU60 Redux
E-coating White
E-coating White
- 请选择 -

Attention: We can not build the keyboard without the switches! If you do not choose or add the switches in the cart, we will ship the kit without assemble directly.

Gateron Magnetic Jade Switch Set
(Keycaps will get 20% off, automatic discount at checkout)

Each unit is professionally pre-assembled before shipment.

Selections will add $111.00 USD to the price
Just 54 remaining
SKU: ZH19378
KBDfans x MM HE Gaming Keyboard
  • Pre-assembled: Each unit is professionally pre-assembled before shipment.
  • Lubrication: The Typeplus x YIKB screw-in stabilizer are carefully lubricated for smooth key feedback, enhancing the typing experience.
  • Strong Compatibility: Supports various keyboard layouts and cases
  • High-Performance PCB: Significantly improves key response speed and accuracy, making each keystroke more comfortable.

* Friendly reminder：The PCB needs to be calibrated before use after the switches have been assembled.

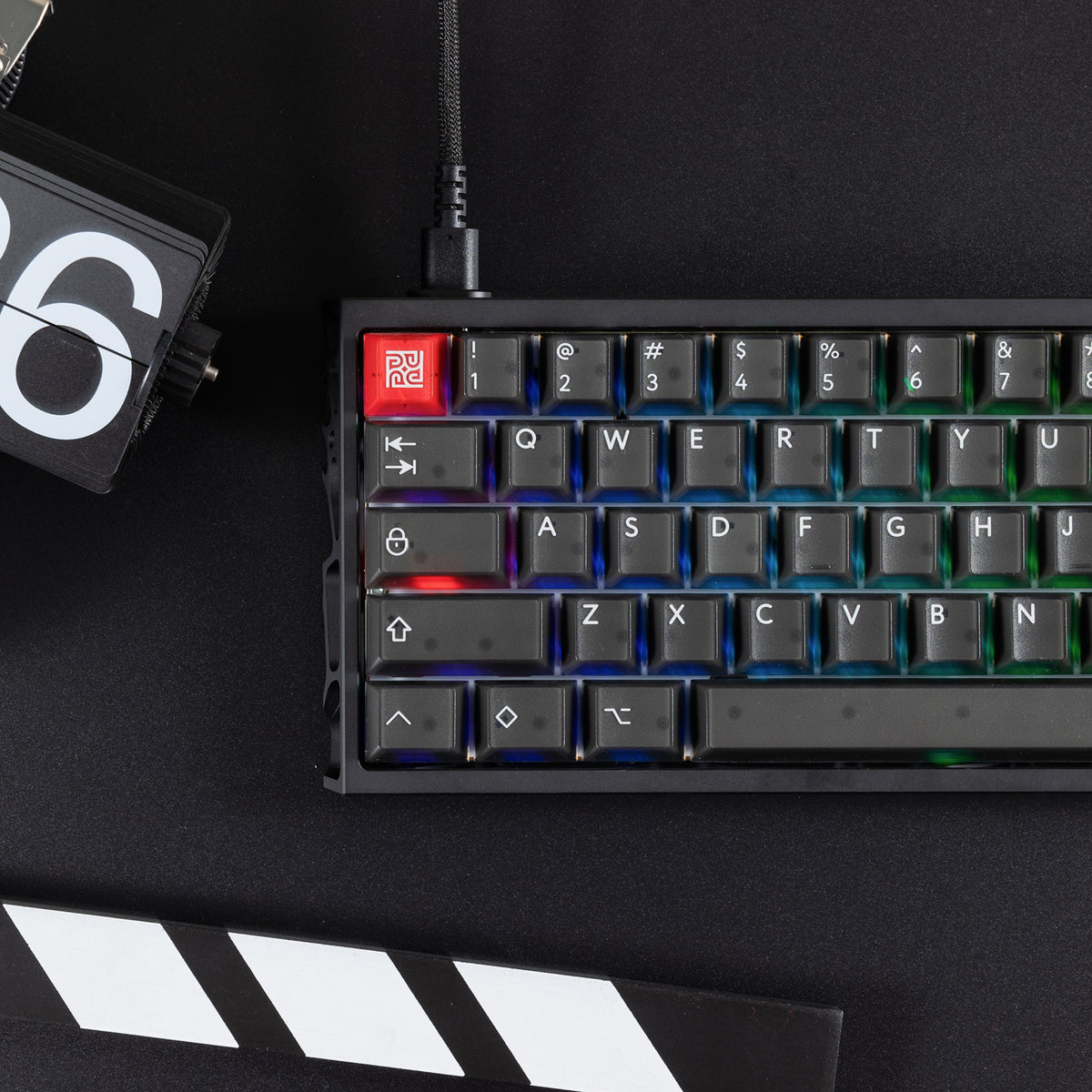

Layout

60% layout，Saves desktop space while keeping directional keys. Lightweight and ideal for travel.

PCB 61

PCB 64

PCB Specifications

Customizable Keymap

total 4 layers available for users to customize key mappings

High Performance

32-bit high-performance MCU ensures a smoother gaming experience

Scanning Frequency

Regular mode is 12K, FPS mode is 20-30K on R2/R3 row, the rest are 4K

Polling Rate

8K polling rate provides a more stable gaming competitive state

Response Time

it’s 0.1ms in Beast Mode, while in Eye Mode, it‘s 0.35ms

RT accuracy

Beast Mode bottom out ±0.01mm, Eye Mode bottom out ±0.002mm

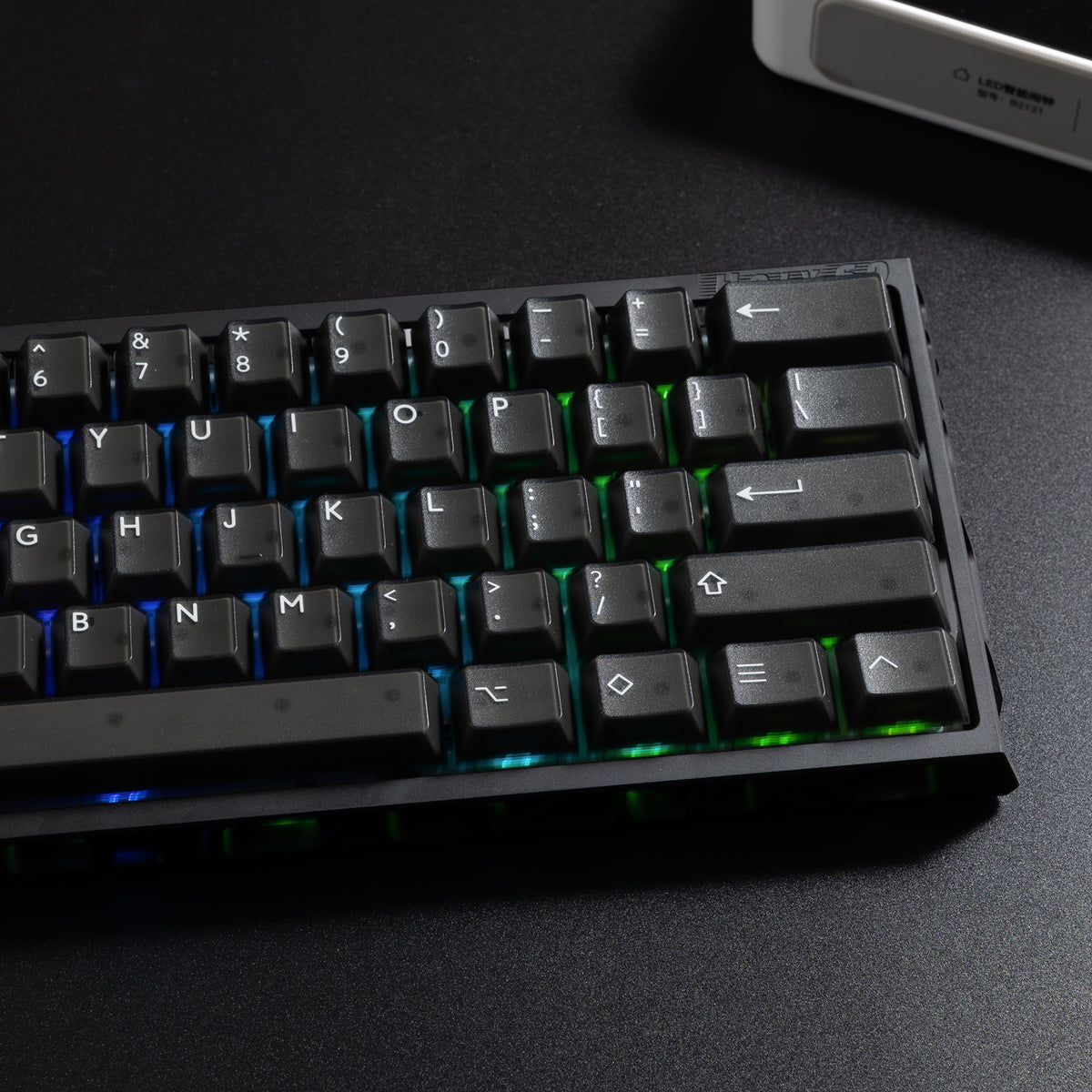

RGB LED

it comes with customizable per-key RGB on the top and RGB underglow

More Features

multi-trigger, rapid trigger, macro, on-board memory, etc

M6Lite+ PCB driver
This keyboard is compatible with Macs, but the *driver software doesn’t support Mac. You can set it up on a PC first and then use it with your Mac.

Gateron Magnetic Jade Gaming Switch

HiFi Sound Magnetic Wall Stem Switch-Magnetic Jade Gaming Switch

Initial Force: 36士5gf

Total Travel: 3.5±0.1mm

Pre Travel: Freely setting

Pre-Lubed: Yes

Typing Style: Linear

Initial magnetic flux: 120±8Gs(PCB1.2mm)

Bottom-out magnetic flux: 700±30Gs(PCB1.2mm)

Lifetime: Over 100 million times keystrokes

Cases options

It is compatible with various cases, providing flexible options to meet the needs of different users.

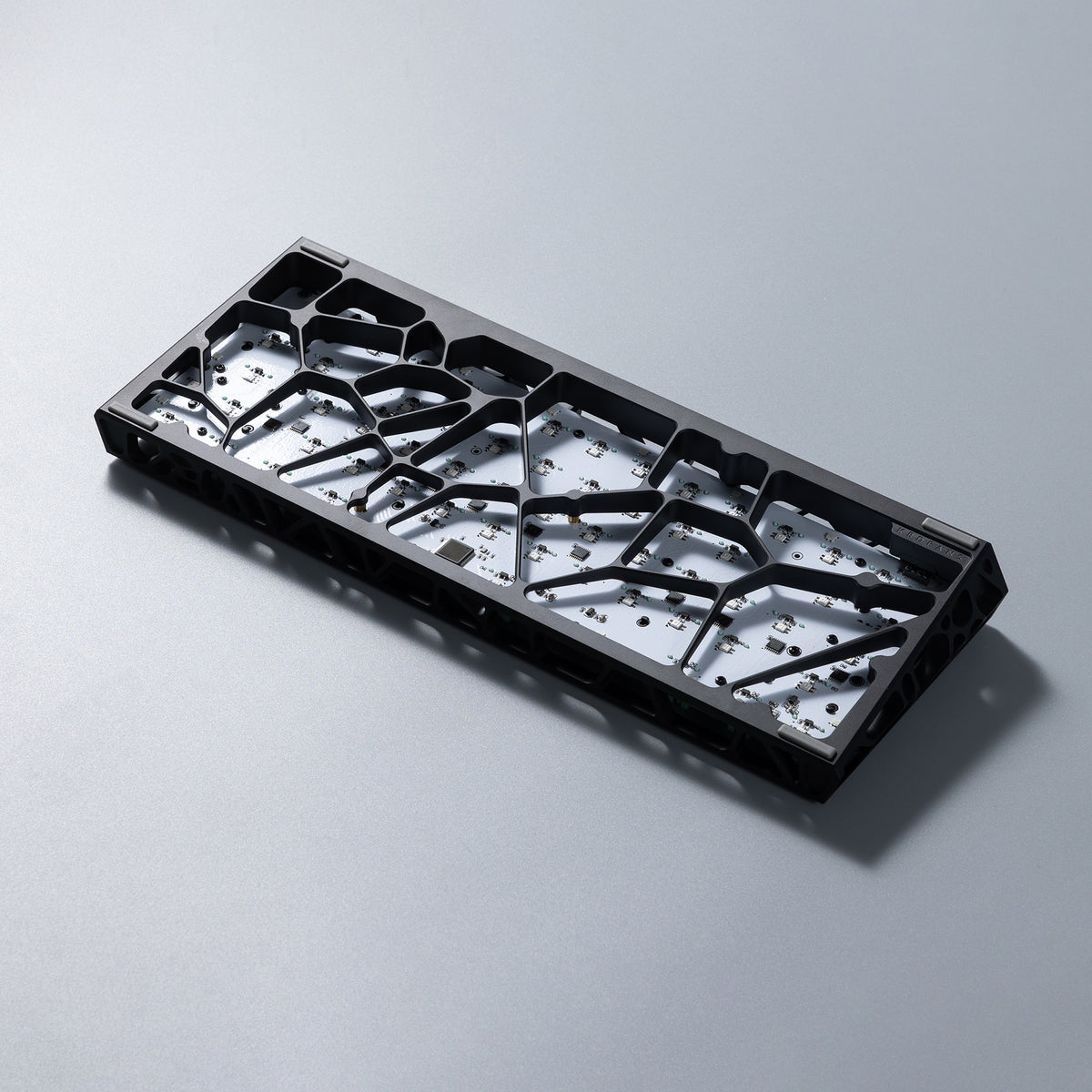

Important Notice Regarding MGlite+ Motherboard and Case Compatibility

Important Notice Regarding MGlite+ Motherboard and Case Compatibility

Due to the component placement on the MGlite+ motherboard, interference may occur with the case's support structures during installation. While we provide cushioning pads (cotton) to mitigate this contact, inexperienced users may, without following instructions or properly installing the pads and internal components, still risk damaging the motherboard's LEDs or causing the board to malfunction.

To prevent potential damage, we pre-apply a Teflon tape strip to the motherboard before shipment. We recommend that users carefully trim this tape, as needed, to ensure proper isolation between the case's support structures and the motherboard components, while minimizing any impact on aesthetics.

Do not completely remove the Teflon tape. It is essential for preventing direct contact between the case and the motherboard components. Damage resulting from the complete removal of the tape will be the responsibility of the user.

This interference has only been observed with the MGlite+ motherboard and the current case design. No compatibility issues have been identified with other motherboard models.

Other Accessories

PE Foam

Pre-modified Typeplus x YIKB screw-in stabilizer

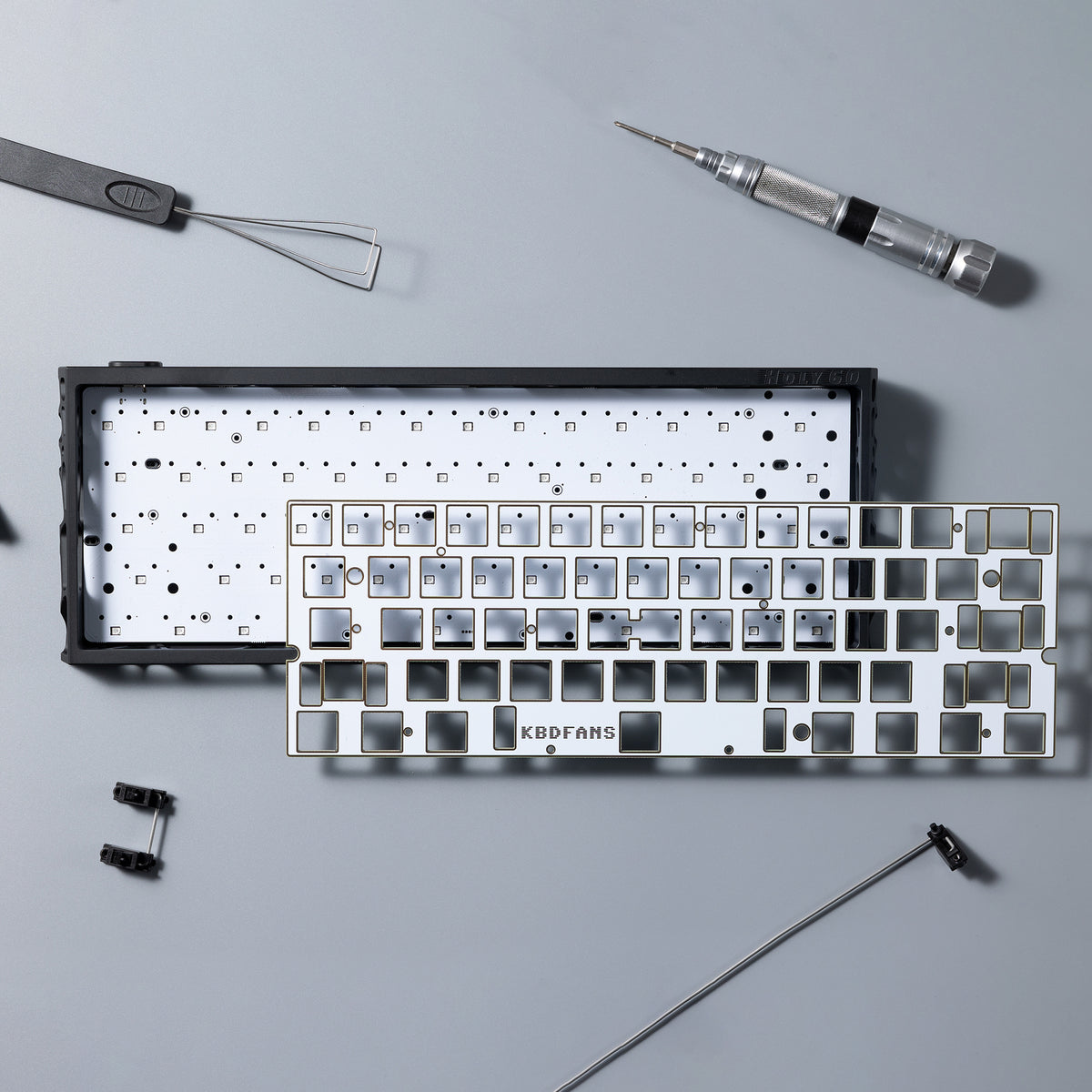

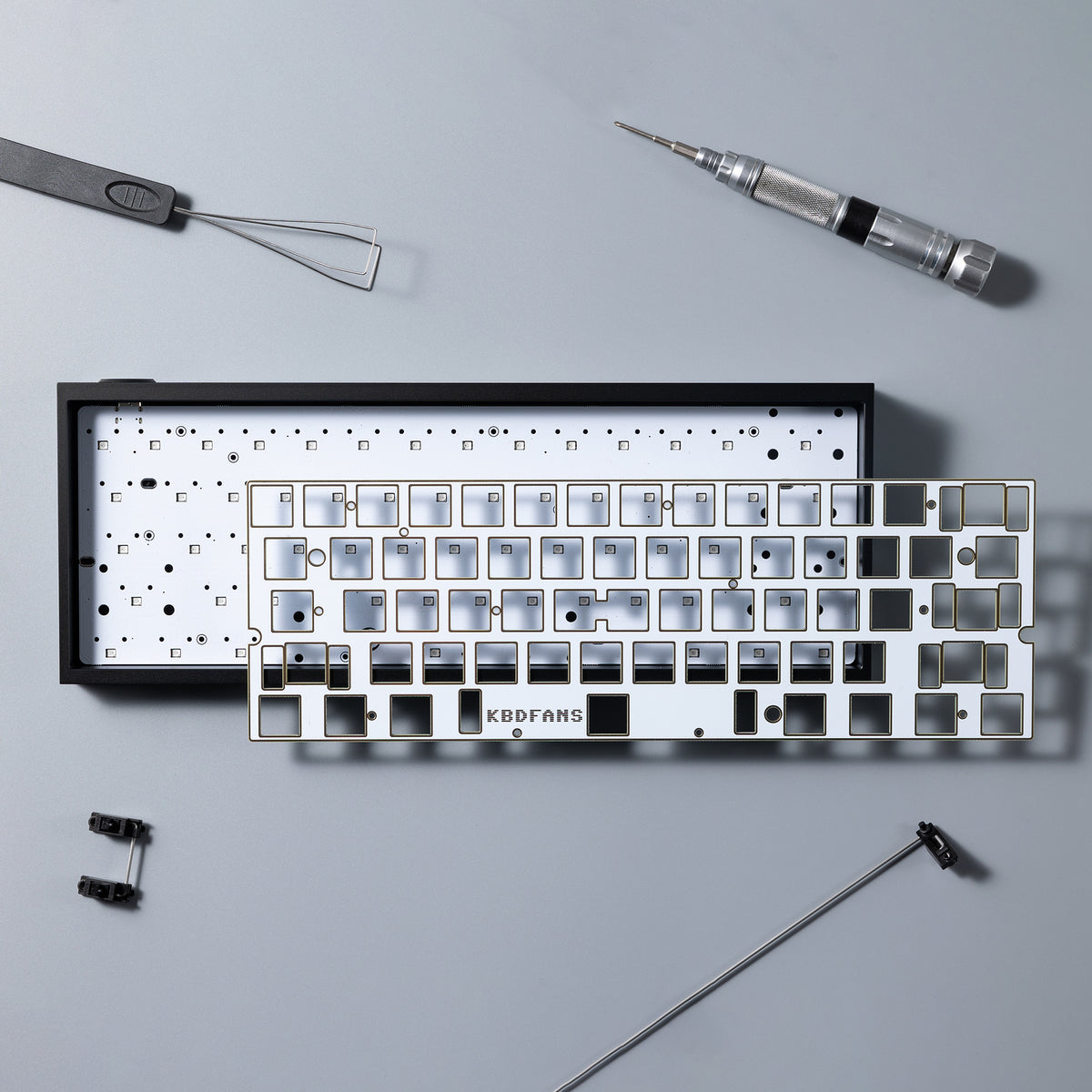

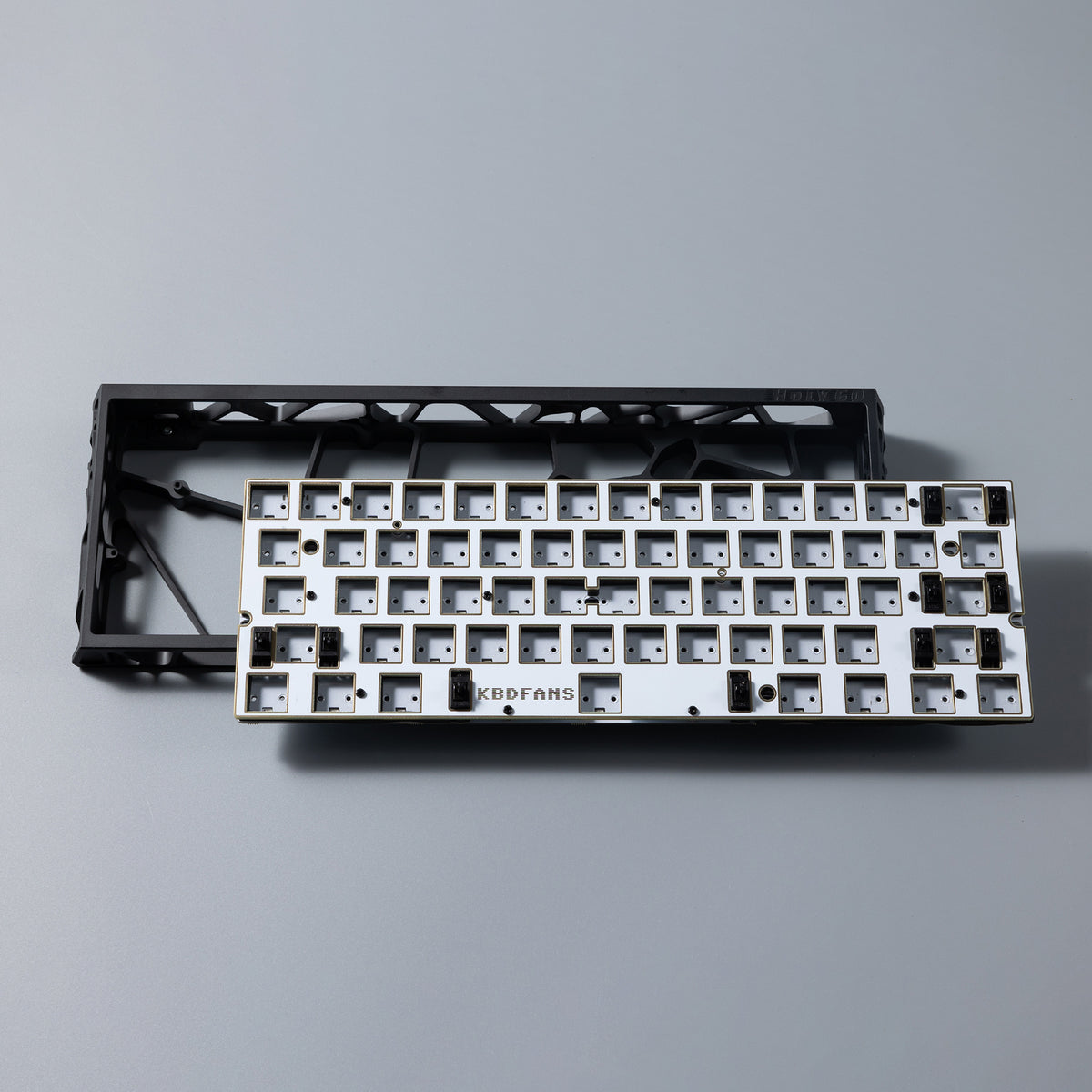

Fr4 Plate

What's included?

Tofu redux case

  • Tofu redux case x1
  • Foam kit x1 set
  • M61 or M64 PCB x1
  • FR4 plate x1
  • Typeplus x YIKB screw-in stabilizer
  • Screws x1 set
  • PE foam x1

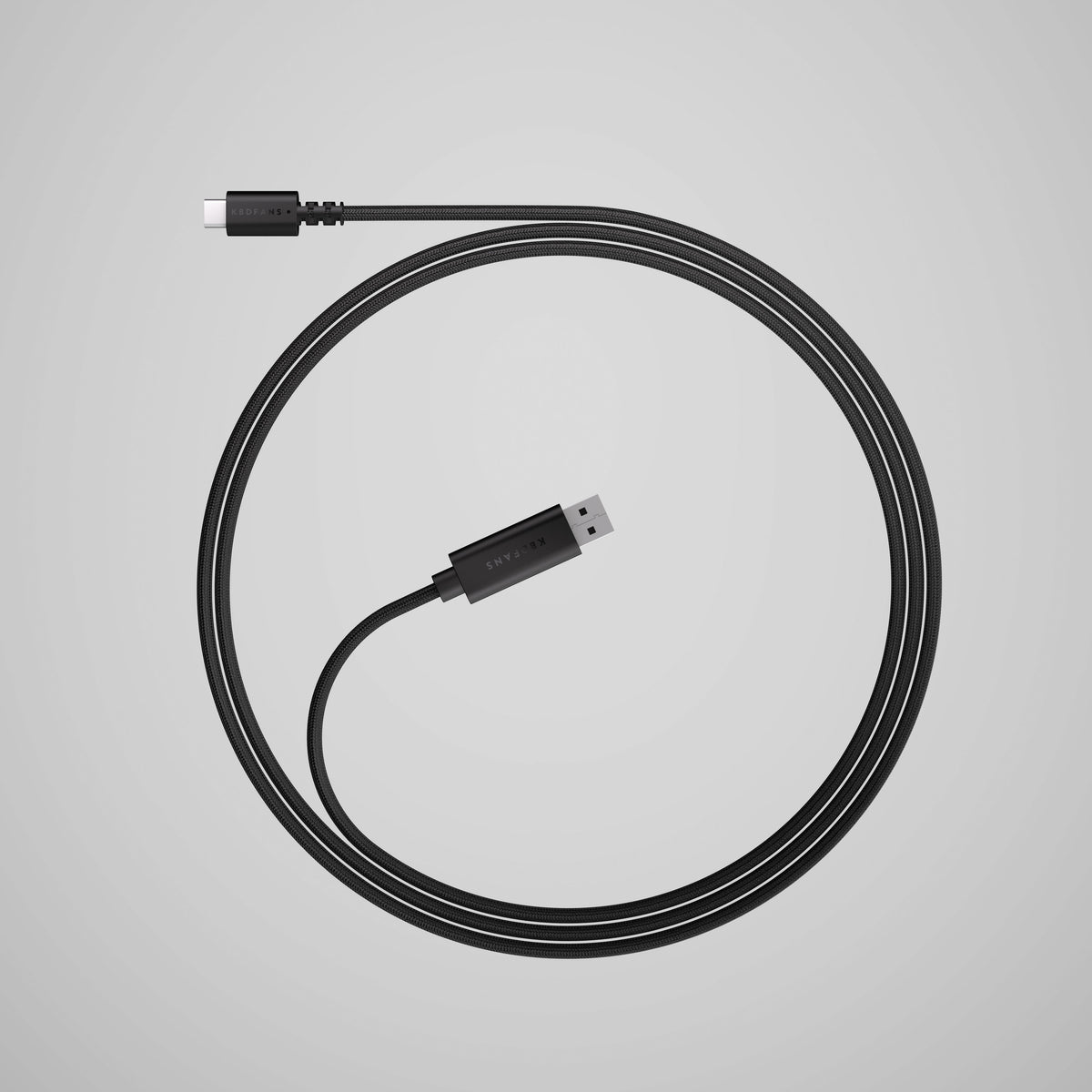

  • USB cable x1

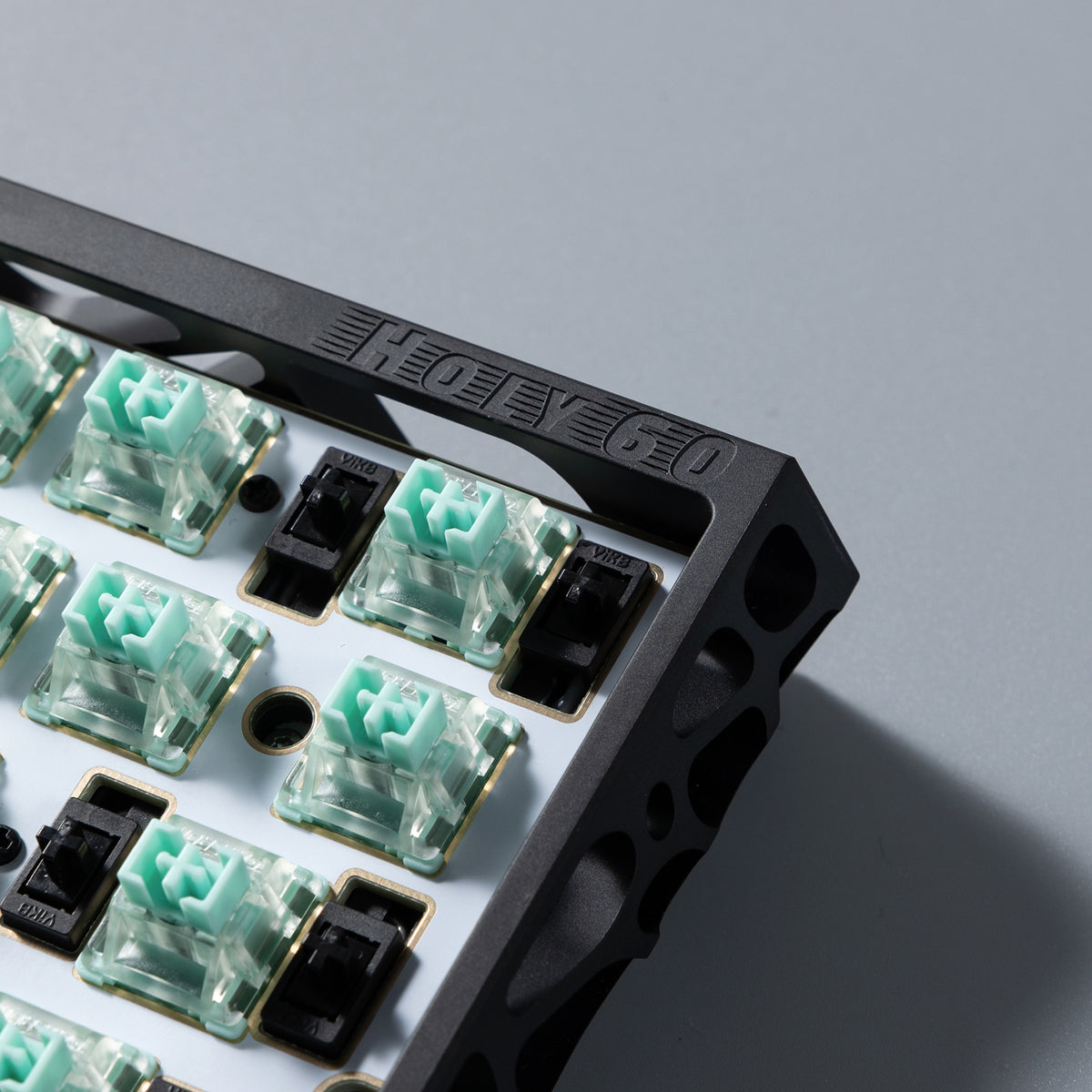

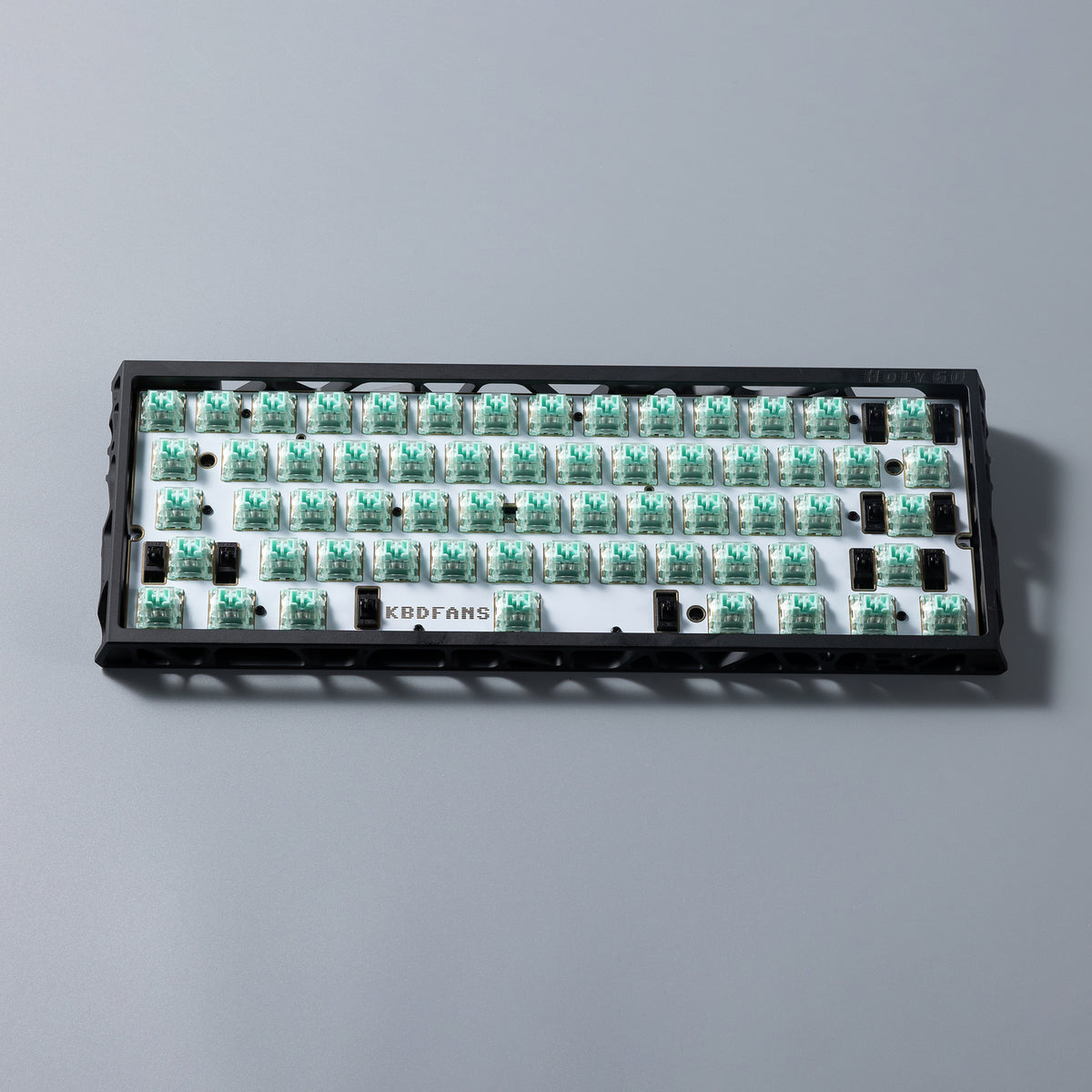

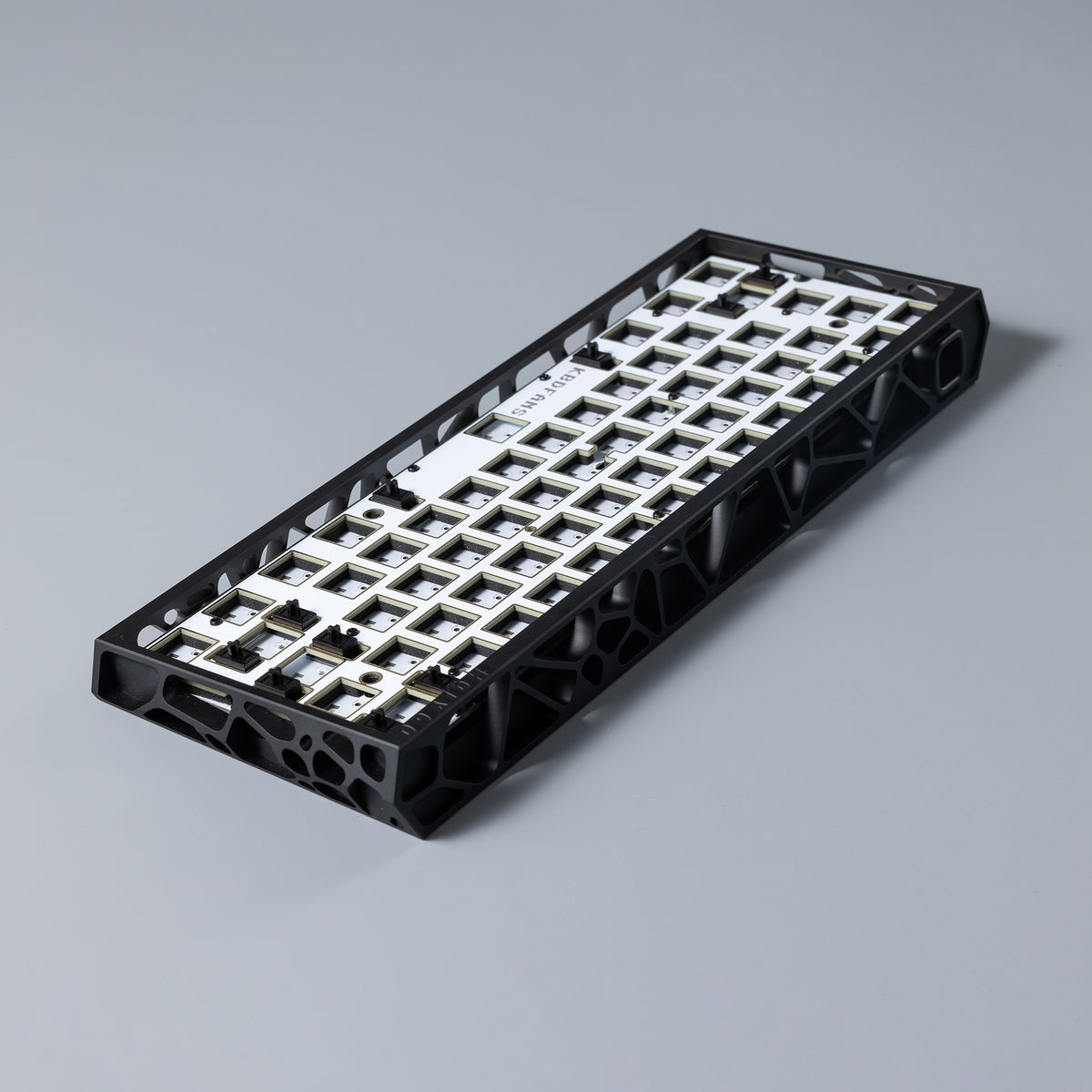

Holy60 case

  • Holy60 case x1
  • Foam kit x1 set
  • M61 or M64 PCB x1
  • FR4 plate x1
  • Typeplus x YIKB screw-in stabilizer
  • Screws x1 set
  • PE foam x1
  • USB cable x1

Other photos
