KBDfans Odin 75 Mechanical Keyboard Kit

🚀In Stock
🛒Pre-order
2023 BFCM
$296.10 Regular price $329.00
SKU: DP5356
by KBDfans

Video

Odin 75%

75% size programmable custom Aluminum keyboard Kit with OLED screen support (sh1106)

This keyboard is another version of Odin, changing from a 100% layout to a 75% layout, eliminating the numpad and adding programmable OLED

Flexible cut PCB

Programmable: QMK firmware, and you can configure your keyboard with the online via tool

Flexible cutting PCB:The PCB is 1.2mm thickness and supports the open source daughterboard

Hot swappable:You can install your favorite switch without soldering. Replacing the switch is just as easy

Plate

Polycarbonate and Fr4 plate(Flexible cutting)

Layout

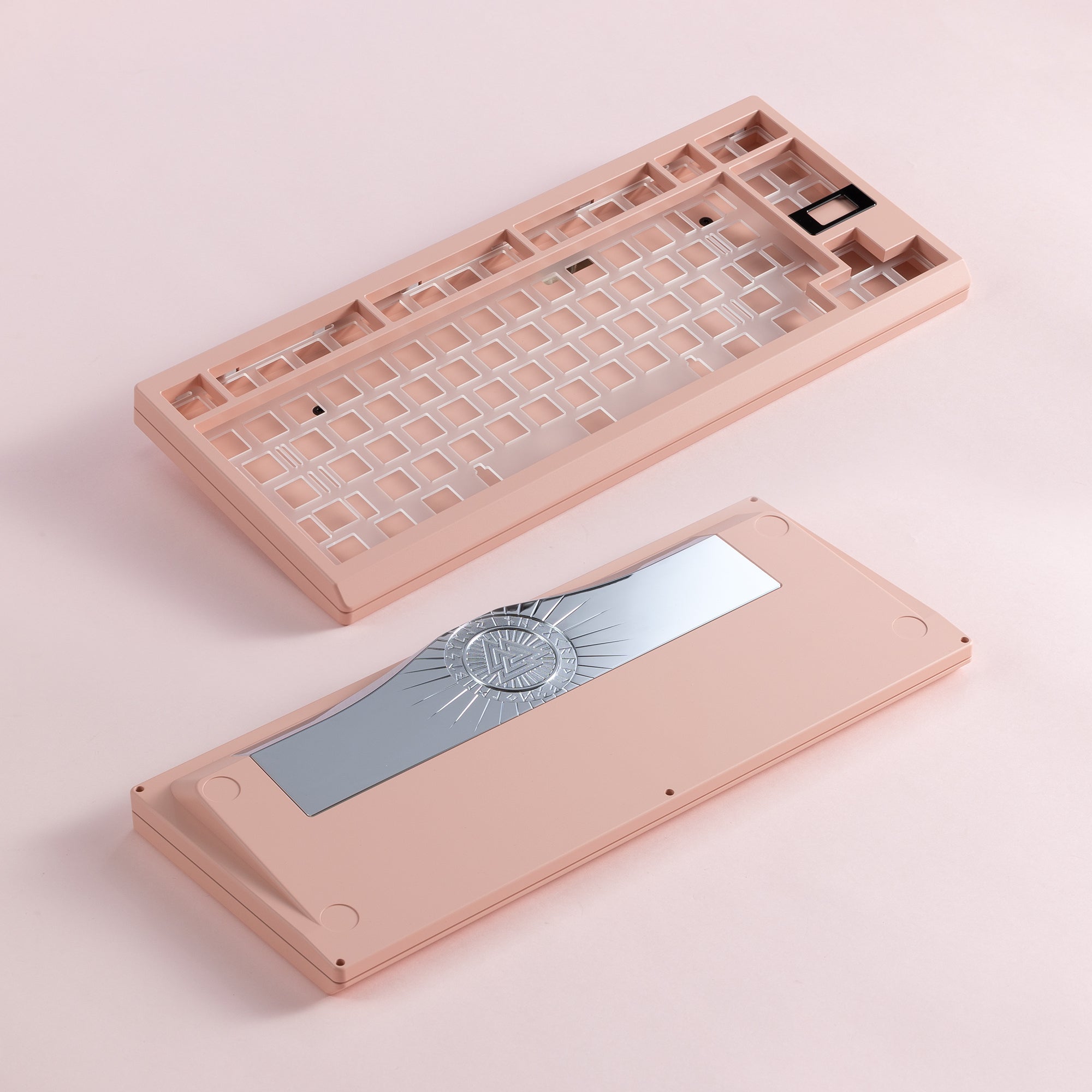

Mirror polished PVD aluminum weight

7° typing angle

More Render

Build Tutorial + Sound test

What is inside?

Text

Text


Update

  • fgTheTThe pre-order case is expected to be shipped in December,2023 (2023-10-28)
  • Porder will ship around July 2023
  • Start shipping on May 2023(2023-03-05)
  • A few cases have arrived in warehouse, others still in production (2023-02-06)
  • PVD coating process is expected to be completed in February,2023 (2022-12-22)
  • The production of PCB and case will be completed in mid-December,2022 (2022-11-22)
  • In production (2022-11-01)
  • R1 prototype is completed (2022-11-01)

Group Buy Date: Nov 25, 06:00 PM (Pacific Standard Time Timezone)

Specs

  • Case: Top aluminum, bottom aluminum
  • Case color: Black, Dark Gray, Dark Blue, Burgundy Red, E-white, Gray Purple
  • Wired version PCB: Hot-swap version, Flex cut, without RGB effect, 1.2mm thickness
  • Notes: Support VIA and VIAL(It is recommended to use VIA). VIAL's firmware is not official
  • Plate: Polycarbonate and FR4
  • Structure: Leaf spring mount; 75% layout
  • Interface: USB-C
  • Translucent OLED Screen
  • Foam: Case foam and PCB foam (PORON material)
  • Weight Bar: PVD coating silver aluminum
  • Rubber feet: Round rubber feet
  • Typing angle: 7°
  • Weight: ≈1.8kg
  • Designer: KBDfans



Disclaimer

All the daughterboards from KBDfans are pre-assembled with JST cable, please check carefully how they connect together, if you insert the other end in the wrong direction, there is a chance to damage the pin inside the connector. This is not eligible for refund and replacement.



  Include

  1. Aluminum case x1
  2. Aluminum weight bar x1
  3. Translucent OLED screen x 1
  4. Flexible cutting PCB(Includes stabilizers shims) x1
  5. Flexible cutting FR4 plate x1
  6. Polycarbonate plate x1
  7. Case foam x1
  8. Mid frame x1
  9. PCB foam x1
  10. USB daughterboard x1
  11. Switch Pad x1 set
  12. Silicone socks x1 set
  13. Screws x1 set
  14. Rubber feet x1 set
  15.
  16. PCB Firmware
  1. OLED Dirver

  2. OLED module_SH1106 (https://docs.qmk.fm/#/feature_oled_driver)
    QMK firmware_https://github.com/qmk/qmk_firmware/pull/19101
