Engineered for a Divine Typing Experience
Beneath its striking exterior, the Athena 1800 is built with the discerning enthusiast in mind, offering a choice of premium typing experiences.

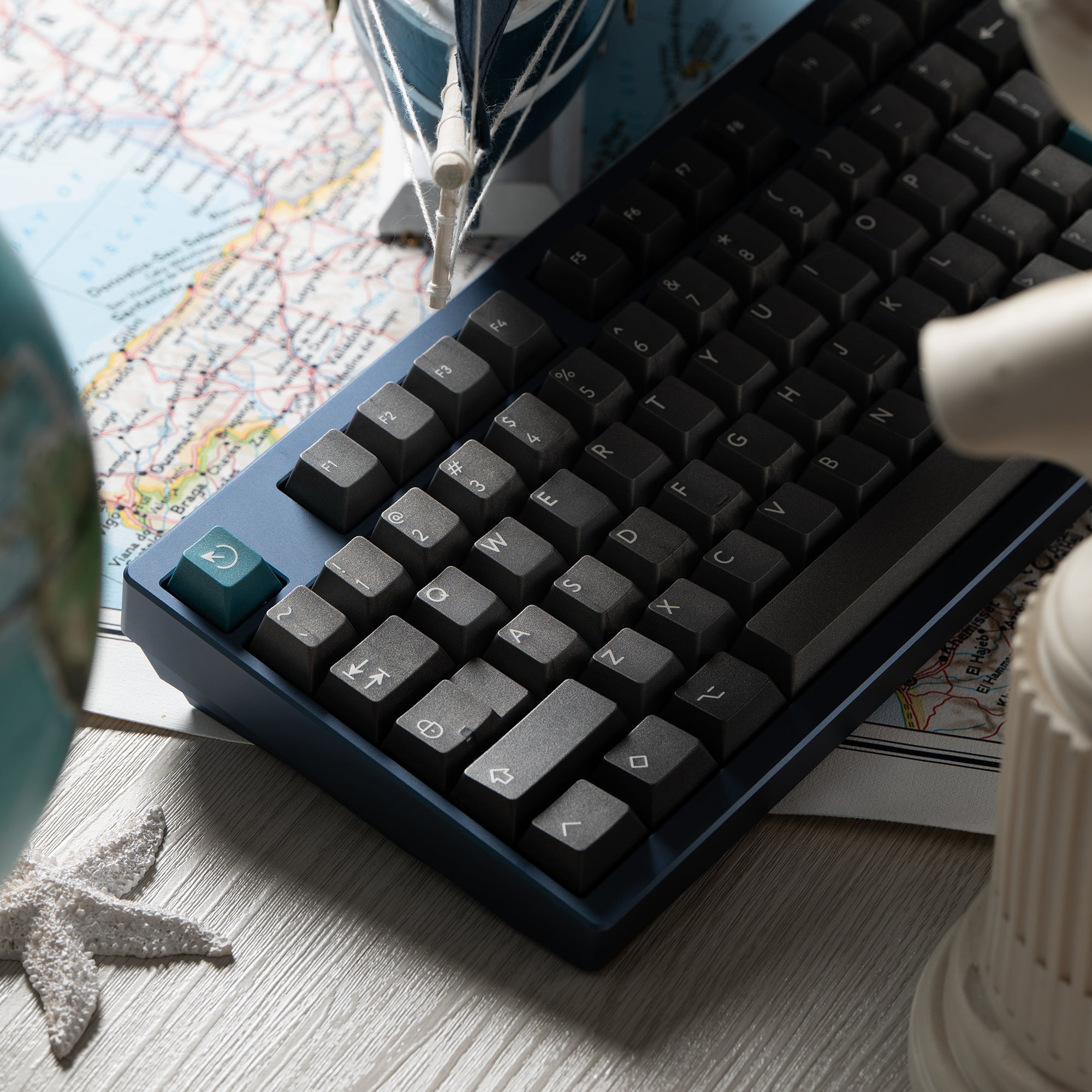

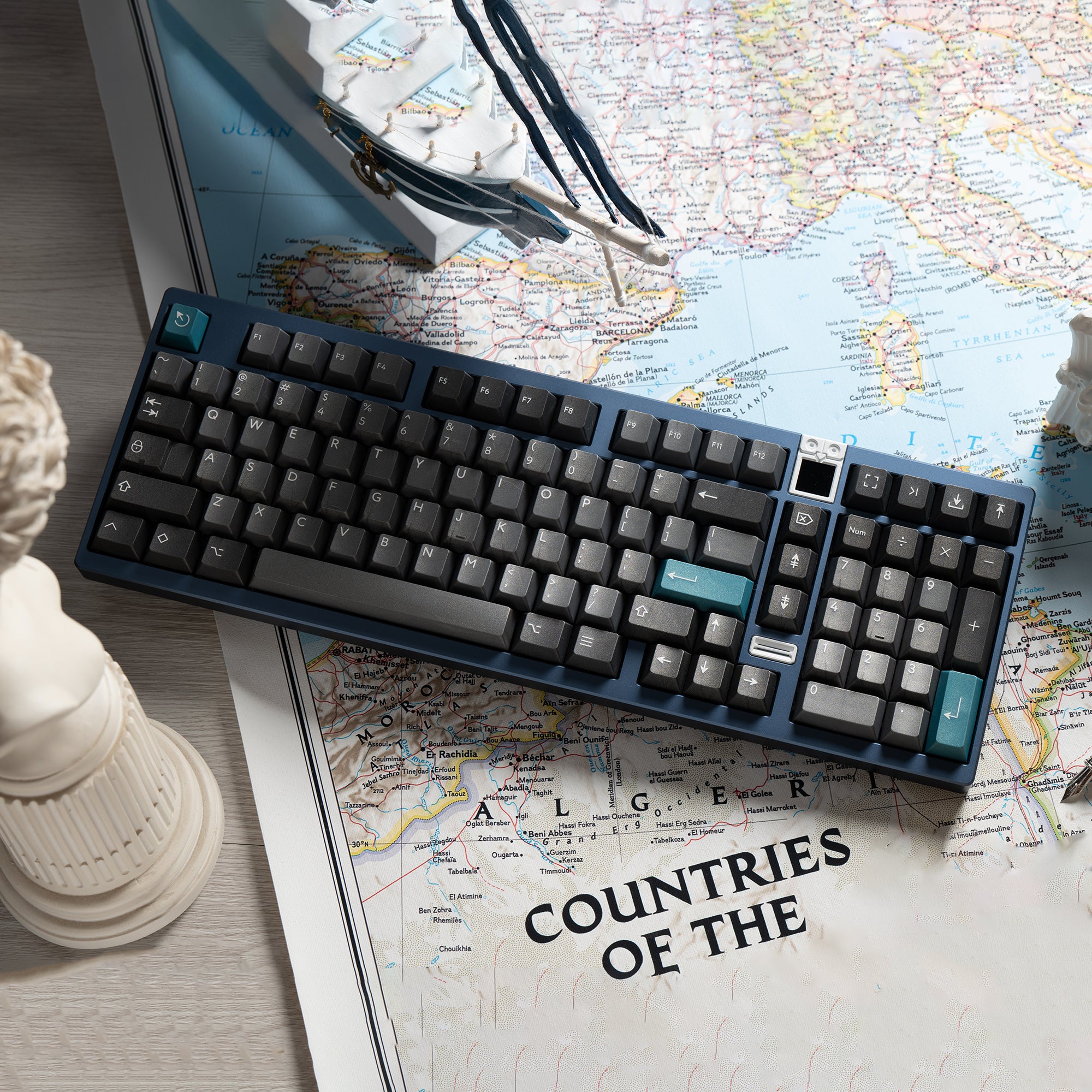

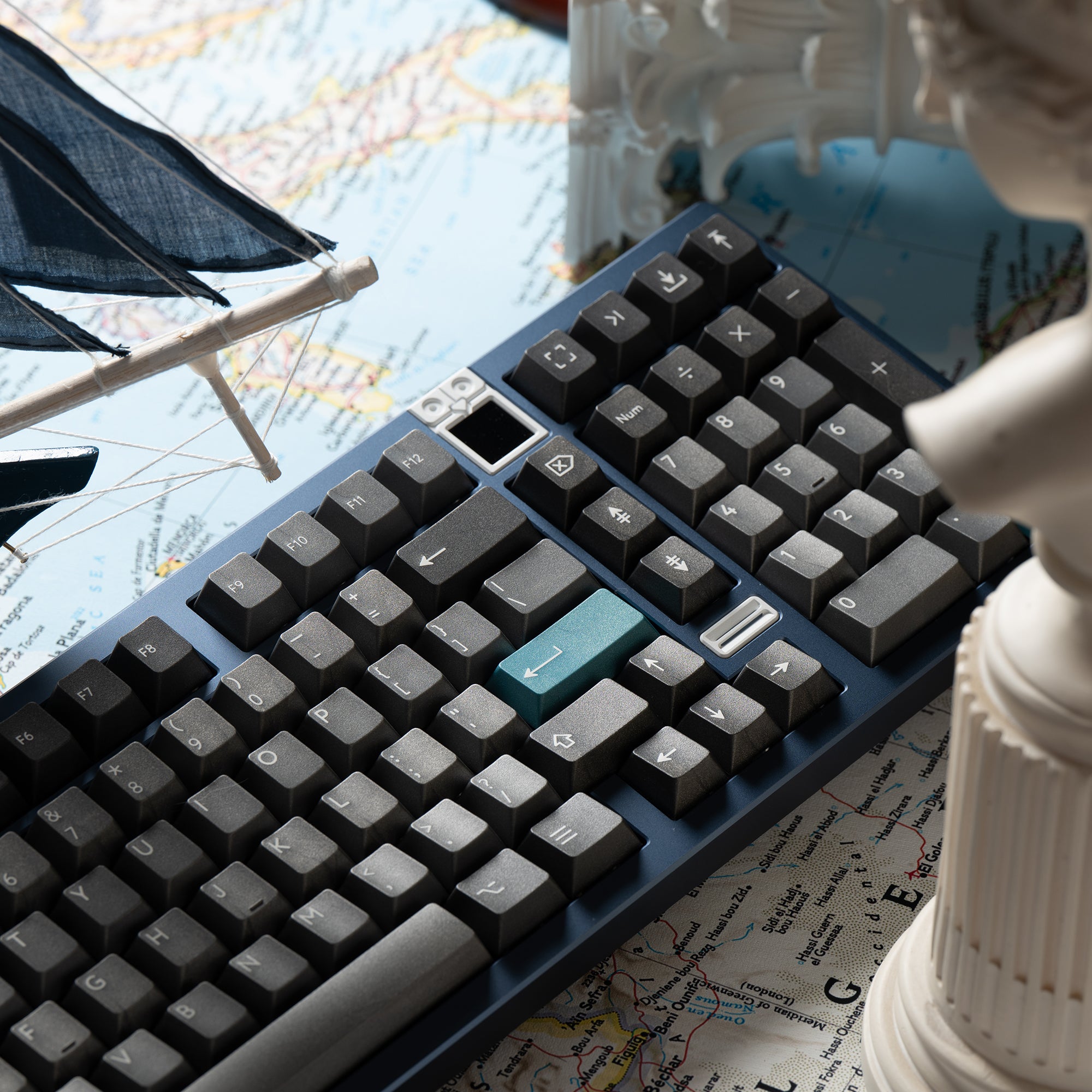

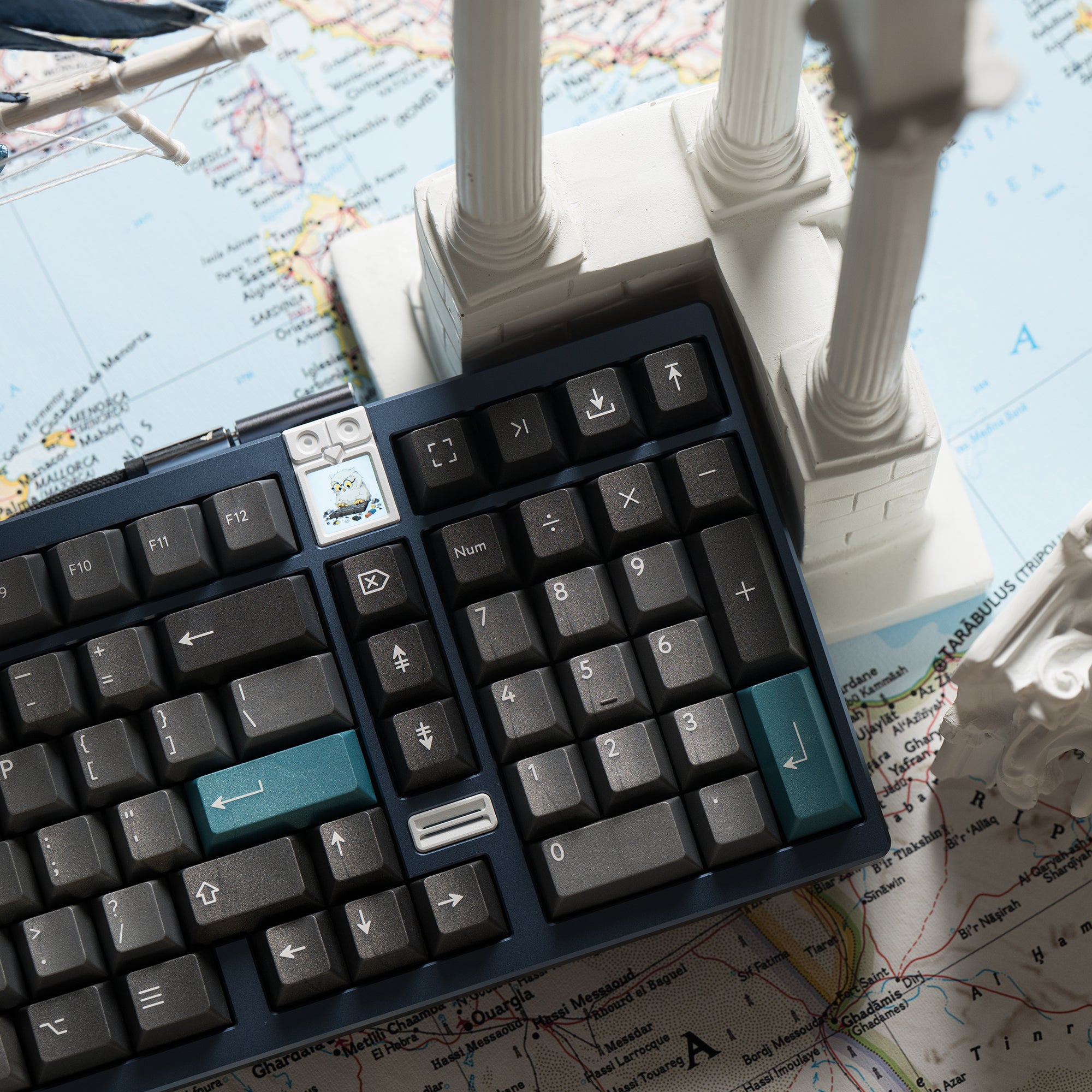

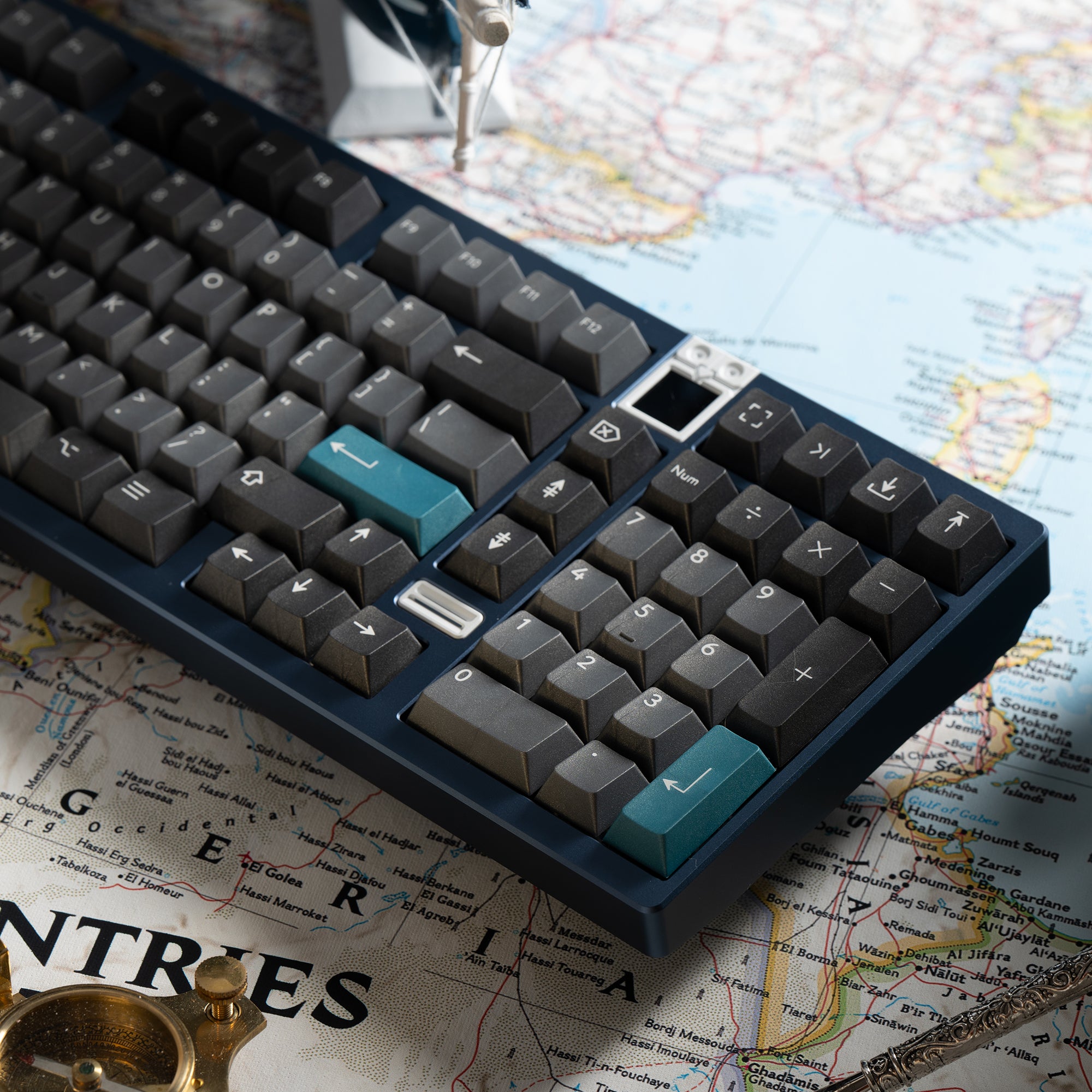

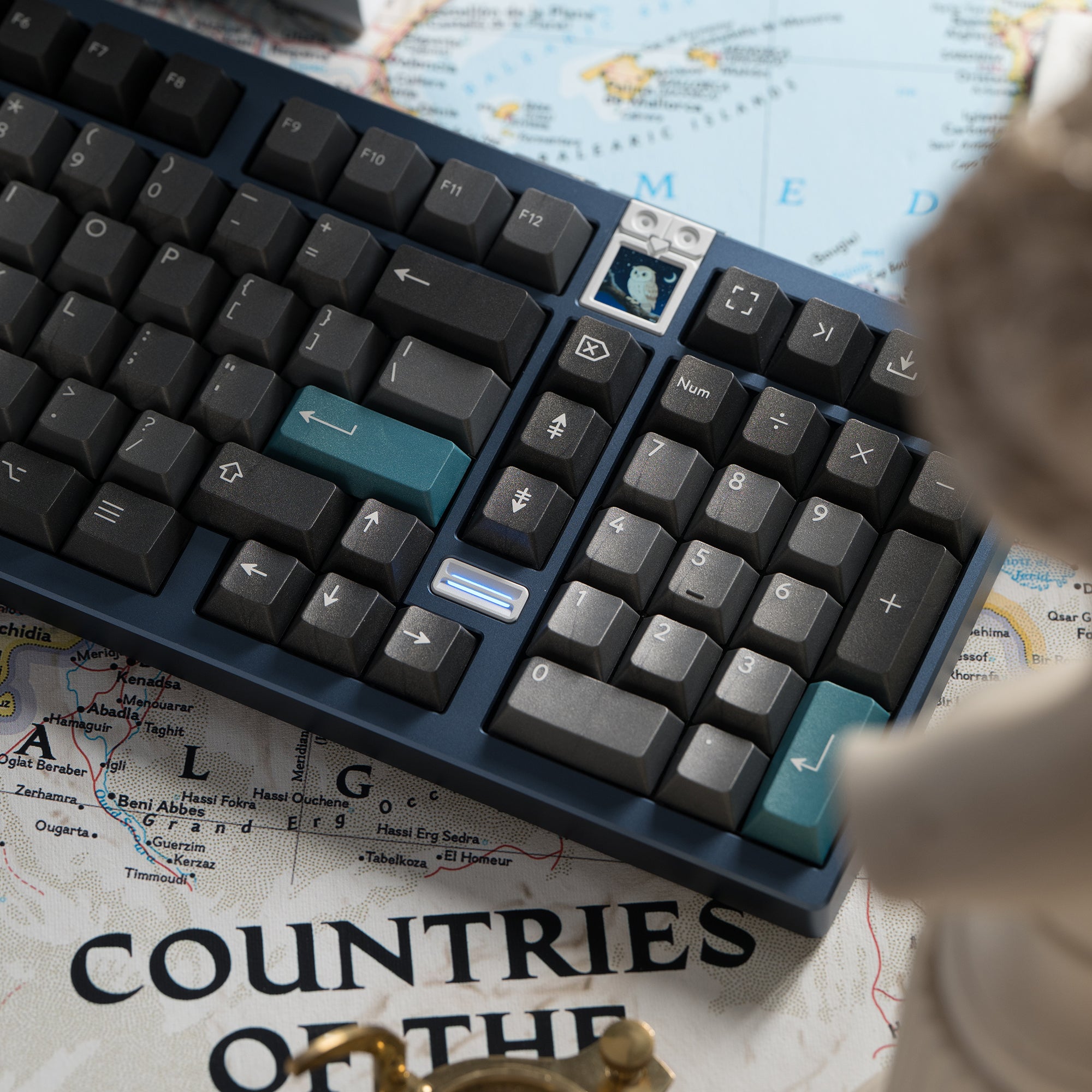

Ready to use Athena 1800 with PBTfans Iron Dolch
$221.00
SKU:
ZH20924
Top Mount
For a classic, firm, and direct typing feel with consistent feedback. Favored by those who appreciate a traditional, responsive typing experience and sound.
PCB Silicone Gasket
Delivering a softer, more cushioned, and acoustically refined typing sensation. This mount isolates the PCB, providing a gentler bottom-out and a more muted, thocky sound profile.

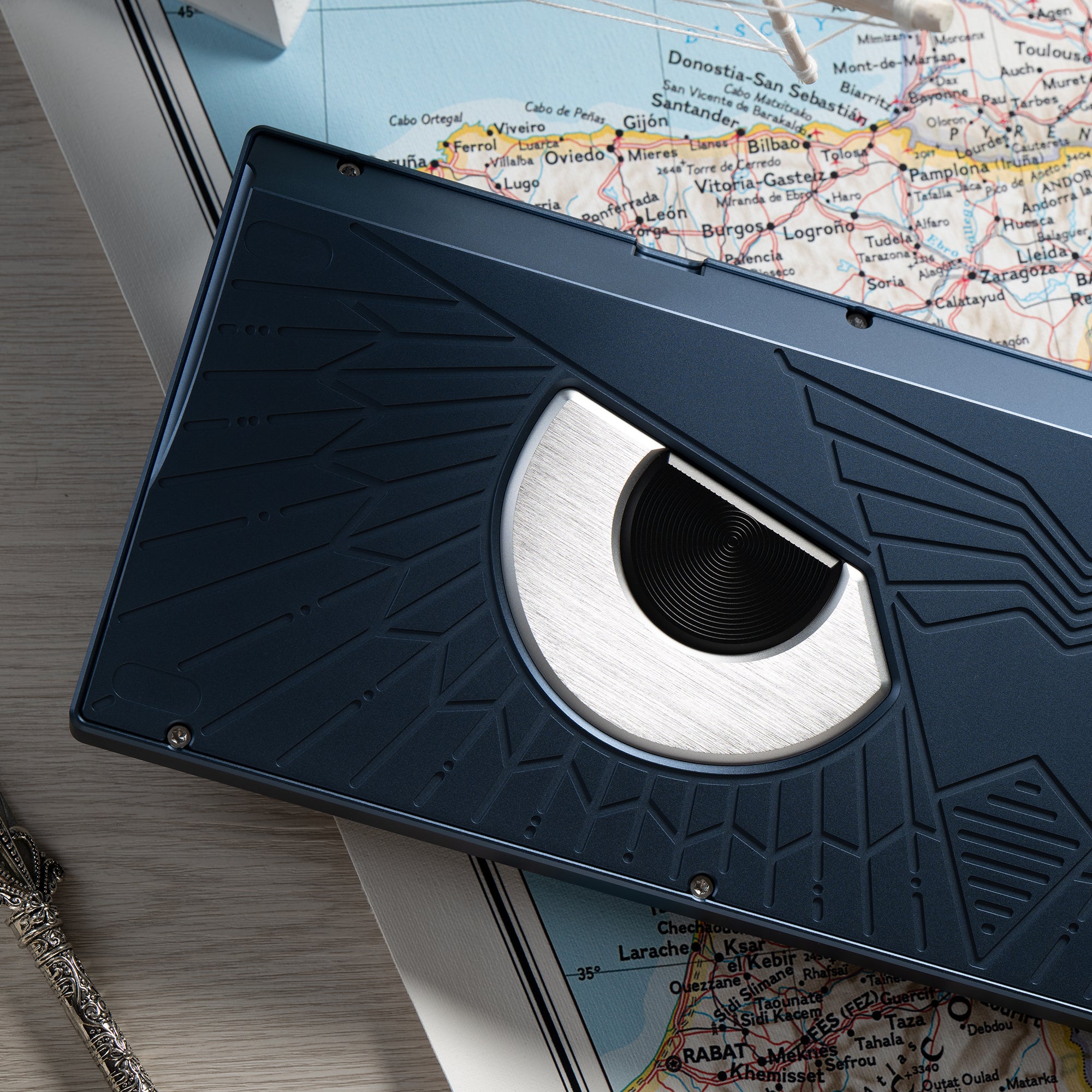

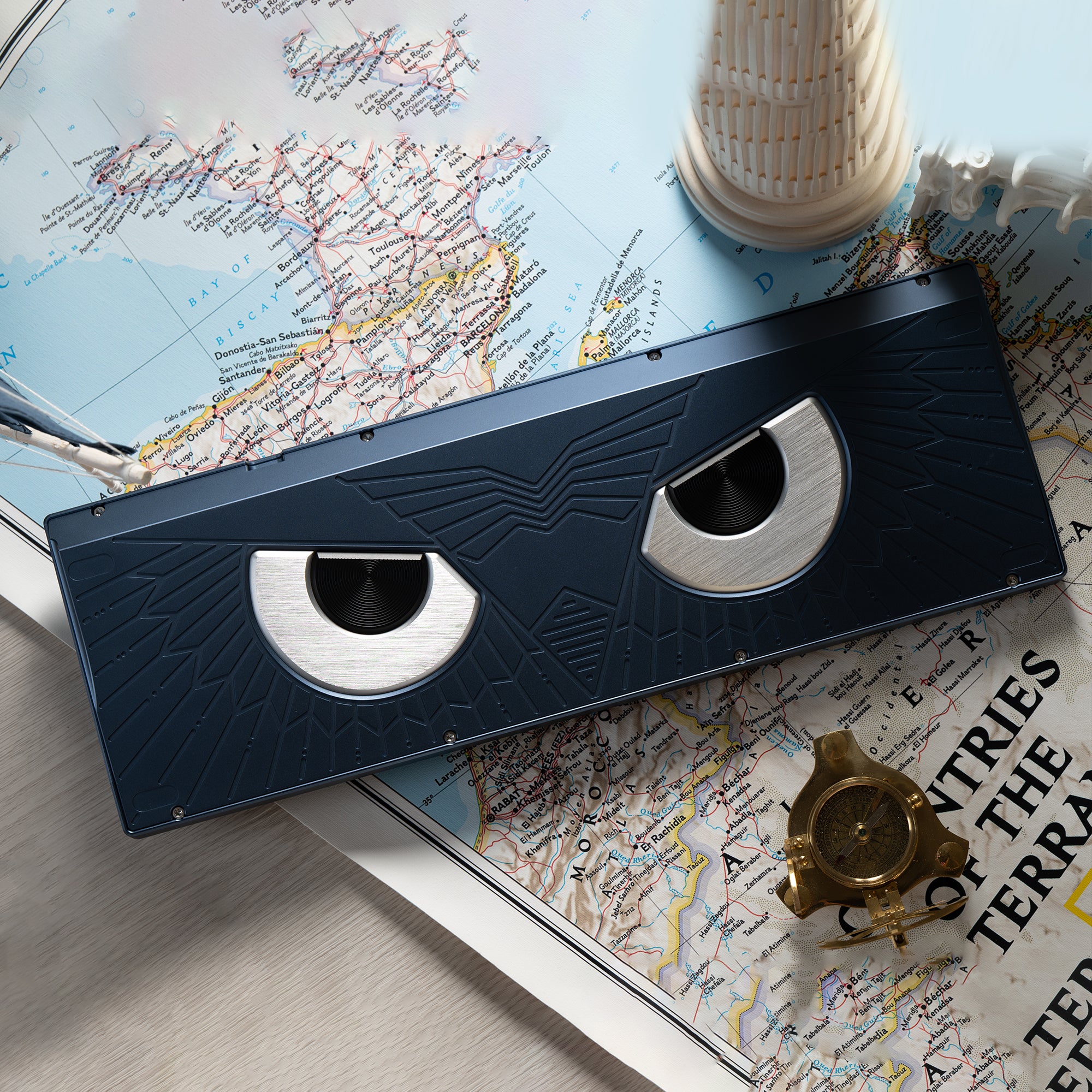

Internal Cover plate and rectangular Weight bar
Cover plate material options: Stainless Steel / Brass / Carbon Fiber
Internal Design: Each version comes standard with a stainless steel internal weight bar.
This design not only provides a substantial, premium typing feel but also offers a diverse range of unique acoustic profiles.
The stainless steel version, in particular, features exquisite "toolpath" engravings—a finely machined texture on its interior.
This hidden detail is a testament to a meticulous commitment to quality and a unified aesthetic throughout the entire build.
Exploded View
Layout
Specs：
- Case material: Aluminum (anodized/e-coating)
- Mounting style: Top Mount/PCB Silicone Gasket
- PCB: 1.6mm solder/ hotswap PCB, non flex-cut, USB-C interface, VIAL supported, includes Caps Lock key/Scroll Lock key RGB LCD indicator
- Plate: Alu/FR4/PC/ Carbon fiber Plate
- Typing angle: 9 degree
- Cover plate material options: Stainless Steel / Brass / Carbon Fiber
-
Weight after built：
≈2.5kg with Carbon Fiber cover plate
≈3kg with Stainless Steel cover plate - Designer: Wei
- Plate file
Firmware：
- ydkb_kbdfans_athena1800_via_v3.json (updated on 08/22/2025)
- kbdfans_athena1800_vial_250822_DP8M_1.uf2 (updated on 08/22/2025)
- Flash manual
-
Athena 1800 GIF Customization Guide
- * Friendly reminder: For custom GIFs, you can contact our customer service to help you convert your image or animation into the .uf2 format
Athena 1800 firmware update (Aug 22, 2025)
1.Upgraded to dual-core firmware for better performance, including improved button response speed and higher GIF frame rates.
2.Added Key Debounce settings. If buttons register multiple presses, try setting Key Debounce to "normal" or "slow" in the Layout settings.
3.Added a screen on/off switch. Left and right Shift+O
4.Fixed an issue where the screen sometimes didn’t light up properly when the computer was turned on.
5.The keyboard now remembers the last used GIF after switching, making it load directly the next time the keyboard is powered on
What's included:
- Top and bottom case x1
- Stainless steel weight bar x1
- Silicone gasket x1 set
- Rubber feet x1 set
- Solder / hotswap PCB x1
- Daughterboard x1
- Cover plate x1
- Foam kit x1
- Plate x1
- LCD screen x1
- Bezel x1
- RGB grille x1
- Aluminum pupil x1 set
- Aluminum iris x1 set
- Screws x1 set
- Force break tape x1 set

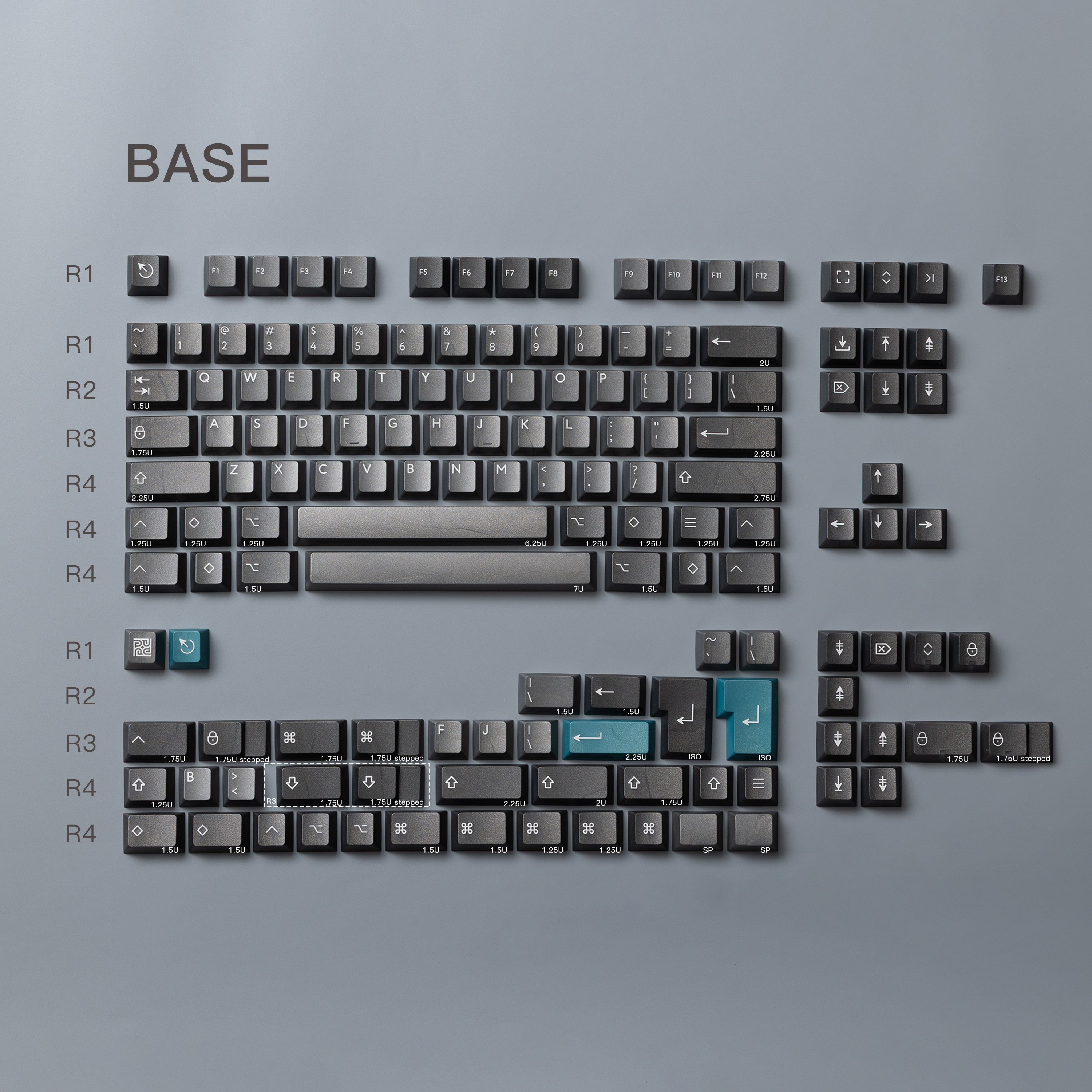

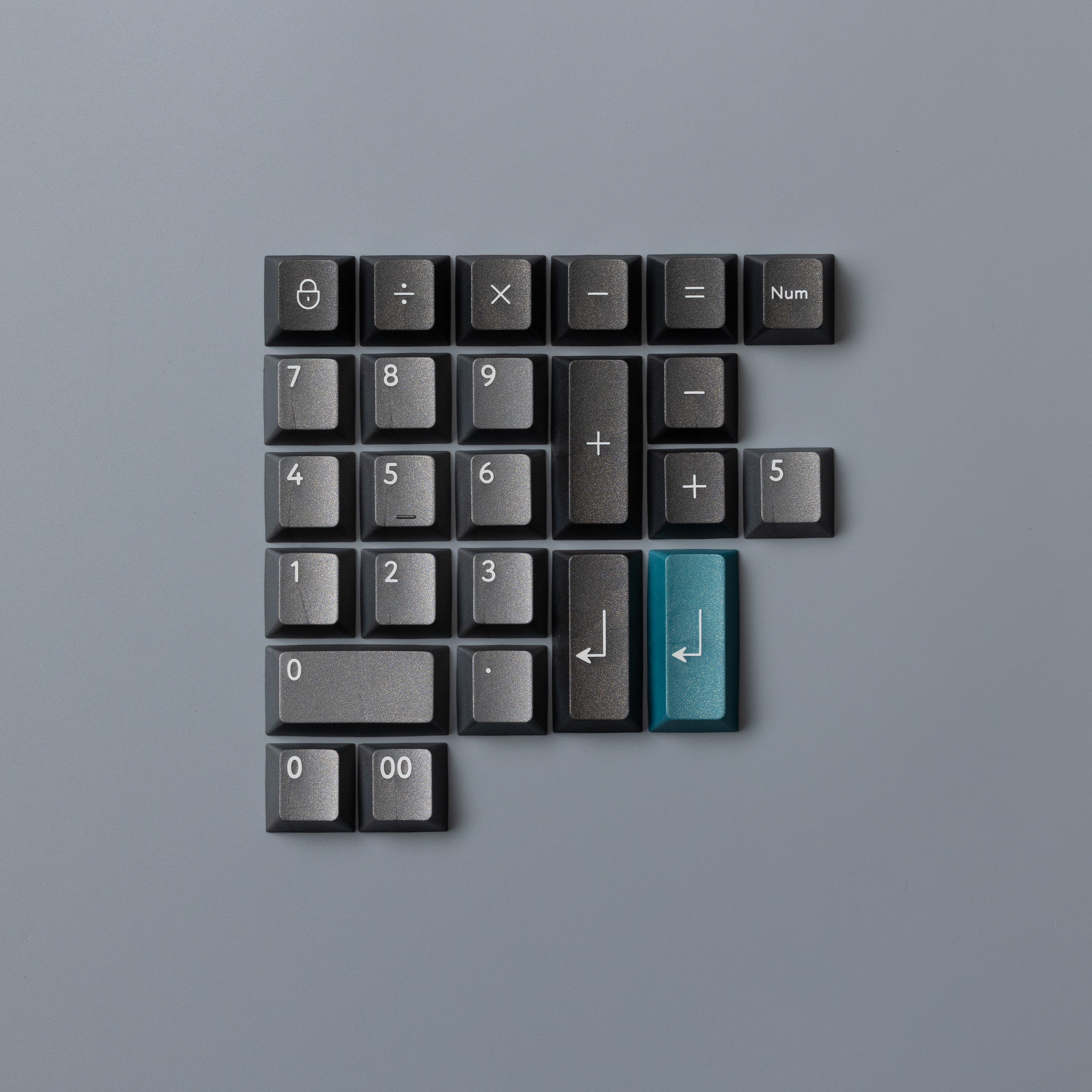

- PBTfans Count Iron Dolch Base kit（PT63-1）Numpad（PT63-3）
Update：
- Pre-order will ship around October 2025 (08/26/2025)
Dimensions
