KEYBOARD GUIDE · DECISION
TOFU60 3.0 vs
TOFU65 3.0:Which Layout Fits Your Build?
The extra column is only part of the story. Your choice changes how you reach arrows and navigation keys, how much room the board leaves for your mouse, and which PCBs and layouts fit the build.
01 · DECIDE
What changes between 60% and 65%
TOFU60 3.0
A compact 60% chassis for builders who are comfortable putting navigation on a layer.
- Smallest desk footprint
- Layer-based arrows and navigation
- WK, WKL and HHKB-style top cases
- Compatibility with selected 60% PCBs
TOFU65 3.0
A 65% layout that keeps the arrow cluster and a slim navigation column.
- Dedicated arrow keys
- Direct access to common navigation
- Shorter adjustment from TKL or 75%
| Layout detail | TOFU60 3.0 | TOFU65 3.0 |
|---|---|---|
| Dedicated arrows | No — normally on Fn layer | Yes |
| Navigation keys | Layer dependent | Dedicated right-side keys |
| Desk footprint | Smaller | Slightly wider |
| Case dimensions | 292.70 × 112.27 mm | 311.75 × 112.27 mm |
| Best fit | Layer users, 60% collectors, compact FPS setups | Daily work, mixed use, first custom build |
TOFU60 3.0 layout
TOFU65 3.0 layout
THE DIFFERENCE YOU FEEL EVERY DAY
Fn layer or dedicated keys?
On a 60%, arrows, Home, End, Page Up, and Page Down usually sit on an Fn layer. A well-designed keymap keeps them close to the home row, so you can navigate without moving your right hand.
That workflow is fast once it becomes muscle memory, but it asks you to learn or edit the keymap. Check the keyboard's remapping software to place these keys where they work best for your workflow.
The TOFU65 3.0 keeps the arrow cluster within easy reach, along with quick access to your preferred navigation keys. You still get a compact board, but common shortcuts behave the way they do on a larger layout.
For coding, spreadsheets, timelines, or any workflow with frequent cursor movement, that direct access is often worth the extra width.
02 · EXPERIENCE
Match the layout to your actual use
Low-sensitivity gaming
The TOFU60 leaves more room for wide mouse sweeps and keeps the alphas centered in a small footprint. In-game binds remain available through layers.
Writing and development
The TOFU65 is easier when you regularly select text, scrub timelines, navigate code, or work in spreadsheets, with less reliance on layers in your workflow.
Building and tuning
Layout does not decide the sound signature by itself. Plate material, mounting points, foam, switches, stabilizers, and keycap profile have a much larger effect.
HALL EFFECT · REQUIRED PARTS
What you need for a Wooting 60HE build
To install a compatible Wooting 60HE, 60HE+, or 60HE V2 module in the TOFU60 3.0, the case alone is not enough. The conversion requires three specific KBDfans parts.

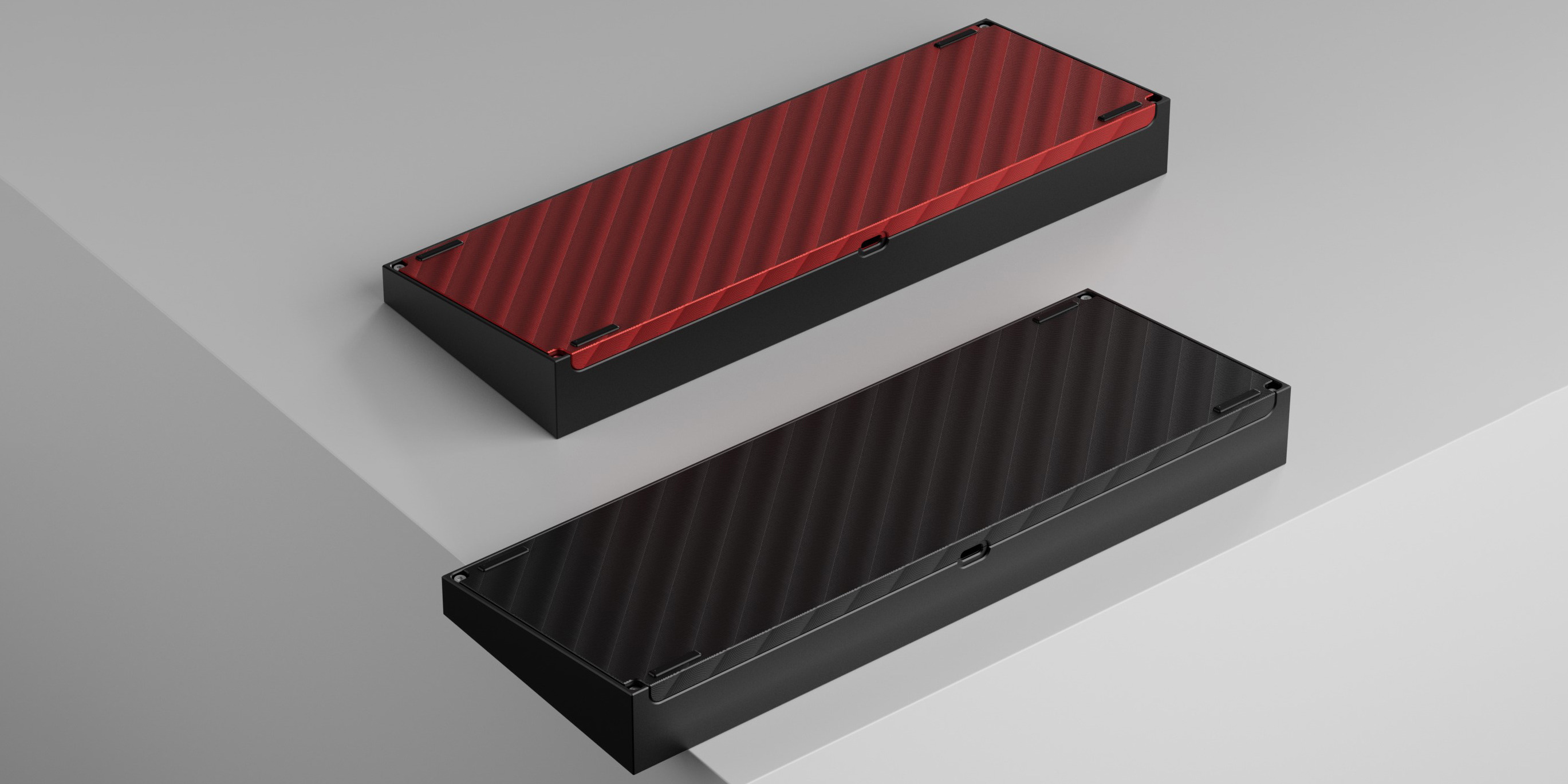

TOFU60 3.0 case
The aluminum chassis that houses the compatible Wooting module and the conversion hardware.
Shop the TOFU60 3.0 case ↗KBDfans custom FPC cable
The dedicated internal FPC cable required to connect and route the Wooting module correctly inside the TOFU60 3.0.
Select the custom FPC cable ↗HE version plate
The HE-specific plate provides the required module fit, switch alignment, and mounting geometry for this build.
Select the Wooting HE plate ↗ASSEMBLY GUIDE
Installation of the Wooting module in TOFU60 3.0
Watch the complete KBDfans assembly walkthrough. Playback starts at the Wooting installation section.
03 · SOUND & FEEL
Will the 60% sound better?
There is no useful winner based on layout alone. Plate material, mount, switches, keycaps, case foam, stabilizer tuning, and desk surface all change the sound more than the extra 65% keys do.
Pick the layout for access and footprint.
COMMUNITY BUILD LIBRARY
Hear different TOFU builds
These videos use different plates, switches, keycaps, foam, and tuning. Use them to explore possible sound signatures, not as a controlled 60% versus 65% comparison.
04 · CONFIGURE
SPEC THEWHOLE BUILD

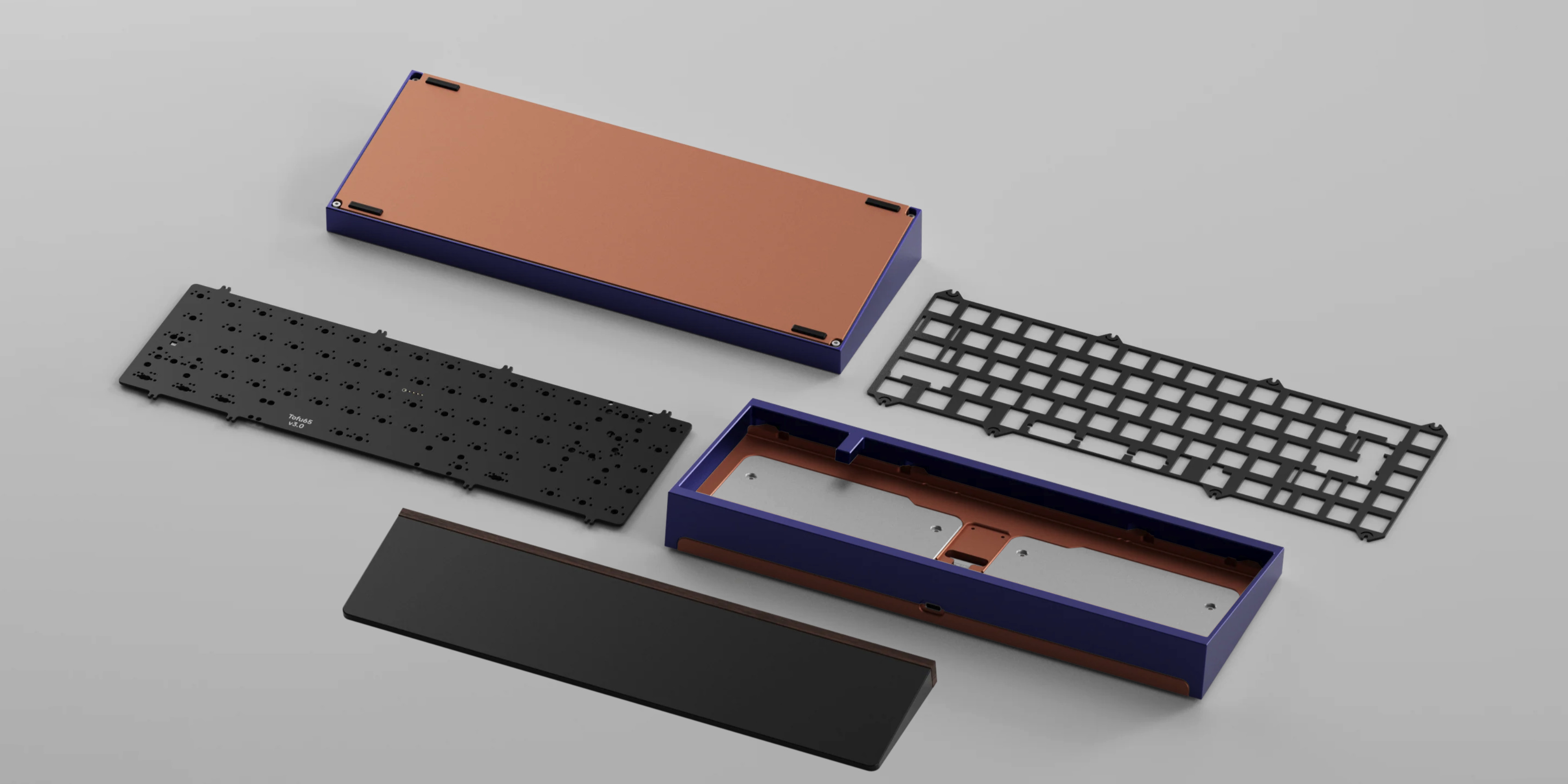

Once the layout is settled, choose the parts that define the board: the platform, finish, internal weight, PCB, plate, foam, and add-ons. The Configurator filters the available combinations and keeps the running price and weight visible.
CONFIGURE YOUR TOFU 3.0 ↗- Choose the 60% or 65% platform
- Select the top case, finish, and internal weights
- Match the PCB and supported layout
- Choose plate material and foam
- Review compatibility, price, and weight
05 THE VERDICT
Choose the keymap first.
Tune the build second.
Buy the TOFU60 3.0 if…
You already like 60% keymaps, want a narrower chassis; and need more mouse room, or plan to use a compatible HE PCB such as Tofix HE or a Wooting module.
Buy the TOFU65 3.0 if…
You want dedicated arrows, use navigation keys throughout the day, or need one compact custom keyboard to cover work and gaming.
For most first-time custom builds, the TOFU65 3.0 is the safer daily driver. The TOFU60 3.0 makes more sense when the 60% workflow itself is part of the appeal.
06 BUILD QUESTIONS
Frequently asked questions
Is the TOFU65 3.0 better than the TOFU60 3.0?
No. The TOFU65 is easier to live with if you need dedicated arrows and navigation keys. The TOFU60 is the better fit for an established 60% keymap or a smaller footprint.
Is a 60% or 65% layout better for a first custom keyboard?
A 65% is usually the easier first build because the arrow cluster remains on the base layer. Choose 60% when you are comfortable using an Fn layer or already know the exact keymap you want.
Which layout is better for FPS gaming?
Both support the same core gaming keys. A 60% board leaves a little more mouse room, which can help low-sensitivity players. A 65% adds convenient arrows for desktop use without becoming a large board. 60% boards are compatible with the HE modules.
Which layout is better for programming?
A 65% gives direct access to arrows and selected navigation keys. A 60% can be just as fast when those functions sit on a well-designed home-row layer, but it depends on your keymap and muscle memory.
Are 60% boards compatible with HE PCBs and modules?
Selected 60% cases can support compatible HE PCBs or modules, including options such as Tofix HE and supported Wooting modules. Compatibility is not universal: confirm the PCB or module revision, plate, USB routing, stabilizer mounting type, mounting hardware, and internal clearance before ordering.
What is the difference between solderable and hot-swap PCBs?
A solderable PCB requires each switch to be soldered and usually supports more layout options. A hot-swap PCB accepts compatible switches without soldering, but its socket positions define a fixed layout. Always match the PCB, plate, and bottom-row layout.
How can I configure my PCB for keymaps, layouts, and RGB?
Use the remapping or firmware tool supported by the selected PCB, such as VIA, QMK, or the manufacturer's configurator. Check the PCB product page before flashing firmware, and use only the file made for the exact PCB revision.
Does TOFU60 sound better than TOFU65?
Not by default. Plate material, mounting, switches, keycaps, foam, stabilizer tuning, and the desk surface have a larger effect on sound and bottom-out feel than the layout size.
Can I install a Wooting 60HE module in the TOFU60 3.0?
Only supported combinations should be treated as compatible. Match the exact module revision, plate, USB routing, stabilizer mounting type, mounting hardware, and clearance requirements shown in the current Configurator or installation guide.
What screws and bumpons are used?
| Specification | TOFU60 3.0 qty. | TOFU65 3.0 qty. | Function |
|---|---|---|---|
| M2.5 × 6 cup-head Torx screw | 4 | 4 | Case screws |
| M2 × 6 cup-head Torx screw | 8 | 8 | Plate screws |
| M2 × 4 small countersunk Phillips screw | 2 | 2 | Daughterboard screws |
| M2.5 × 3.5 cup-head screw | 8 | 8 | Weight screws |
| M2 × 3 countersunk Phillips screw | 4 | 4 | Daughterboard cover screws |
Head diameter: 2.6 mm Head diameter: 3.4 mm
